Imported schema xlink.xsd
Namespace http://www.w3.org/1999/xlink
Annotations
This schema document provides attribute declarations and
attribute group, complex type and simple type definitions which can be used in
the construction of user schemas to define the structure of particular linking
constructs, e.g.<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
           xmlns:xl="http://www.w3.org/1999/xlink">

 <xs:import namespace="http://www.w3.org/1999/xlink"
            location="http://www.w3.org/1999/xlink.xsd">

 <xs:element name="mySimple">
  <xs:complexType>
   ...
   <xs:attributeGroup ref="xl:simpleAttrs"/>
   ...
  </xs:complexType>
 </xs:element>
 ...
</xs:schema>
Properties
attribute form default unqualified
element form default unqualified
Element xlink:title
Namespace http://www.w3.org/1999/xlink
Diagram
Type xlink:titleEltType
Properties
Used by
Model
Attributes
Source
Element xlink:resource
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#resourceAttrs xlink_xsd.tmp#resourceModel xlink_xsd.tmp#resourceType
Type xlink:resourceType
Properties
content complex
abstract true
mixed true
Used by
Element Group xlink:extendedModel
Model
ANY element from ANY namespace
Attributes
QName Type Fixed Use
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType resource required
Source
<xs:element name="resource" type="xlink:resourceType" abstract="true"/>
Element xlink:locator
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#locatorAttrs xlink_xsd.tmp#http___www.w3.org_1999_xlink_title xlink_xsd.tmp#locatorModel xlink_xsd.tmp#locatorType
Type xlink:locatorType
Properties
content complex
abstract true
Used by
Element Group xlink:extendedModel
Model
Children xlink:title
Instance
<xlink:locator xlink:href="" xlink:label="" xlink:role="" xlink:title="" xlink:type="locator" xmlns:xlink="http://www.w3.org/1999/xlink">
  <xlink:title xml:lang="" xlink:type="title">{0,unbounded}</xlink:title>
</xlink:locator>
Attributes
Source
<xs:element name="locator" type="xlink:locatorType" abstract="true"/>
Element xlink:arc
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#arcAttrs xlink_xsd.tmp#http___www.w3.org_1999_xlink_title xlink_xsd.tmp#arcModel xlink_xsd.tmp#arcType
Type xlink:arcType
Properties
content complex
abstract true
Used by
Element Group xlink:extendedModel
Model
Children xlink:title
Instance
<xlink:arc xlink:actuate="" xlink:arcrole="" xlink:from="" xlink:show="" xlink:title="" xlink:to="" xlink:type="arc" xmlns:xlink="http://www.w3.org/1999/xlink">
  <xlink:title xml:lang="" xlink:type="title">{0,unbounded}</xlink:title>
</xlink:arc>
Attributes
Source
<xs:element name="arc" type="xlink:arcType" abstract="true"/>
Simple Type xlink:typeType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration simple
enumeration extended
enumeration title
enumeration resource
enumeration locator
enumeration arc
Used by
Attribute @xlink:type
Source
<xs:simpleType name="typeType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="simple"/>
    <xs:enumeration value="extended"/>
    <xs:enumeration value="title"/>
    <xs:enumeration value="resource"/>
    <xs:enumeration value="locator"/>
    <xs:enumeration value="arc"/>
  </xs:restriction>
</xs:simpleType>
Simple Type xlink:hrefType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:anyURI
Used by
Attribute @xlink:href
Source
<xs:simpleType name="hrefType">
  <xs:restriction base="xs:anyURI"/>
</xs:simpleType>
Simple Type xlink:roleType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:anyURI
Facets
minLength 1
Used by
Attribute @xlink:role
Source
<xs:simpleType name="roleType">
  <xs:restriction base="xs:anyURI">
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>
Simple Type xlink:arcroleType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:anyURI
Facets
minLength 1
Used by
Attribute @xlink:arcrole
Source
<xs:simpleType name="arcroleType">
  <xs:restriction base="xs:anyURI">
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>
Simple Type xlink:titleAttrType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:string
Used by
Attribute @xlink:title
Source
<xs:simpleType name="titleAttrType">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
Simple Type xlink:showType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration new
enumeration replace
enumeration embed
enumeration other
enumeration none
Used by
Attribute @xlink:show
Source
<xs:simpleType name="showType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="new"/>
    <xs:enumeration value="replace"/>
    <xs:enumeration value="embed"/>
    <xs:enumeration value="other"/>
    <xs:enumeration value="none"/>
  </xs:restriction>
</xs:simpleType>
Simple Type xlink:actuateType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration onLoad
enumeration onRequest
enumeration other
enumeration none
Used by
Attribute @xlink:actuate
Source
<xs:simpleType name="actuateType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="onLoad"/>
    <xs:enumeration value="onRequest"/>
    <xs:enumeration value="other"/>
    <xs:enumeration value="none"/>
  </xs:restriction>
</xs:simpleType>
Simple Type xlink:labelType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:NCName
Used by
Attribute @xlink:label
Source
<xs:simpleType name="labelType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>
Simple Type xlink:fromType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:NCName
Used by
Attribute @xlink:from
Source
<xs:simpleType name="fromType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>
Simple Type xlink:toType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:NCName
Used by
Attribute @xlink:to
Source
<xs:simpleType name="toType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>
Complex Type xlink:simple
Namespace http://www.w3.org/1999/xlink
Annotations
Intended for use as the type of user-declared elements to make them
simple links.
Diagram
Diagram xlink_xsd.tmp#simpleAttrs xlink_xsd.tmp#simpleModel
Properties
mixed true
Model
ANY element from ANY namespace
Attributes
Source
<xs:complexType mixed="true" name="simple">
  <xs:annotation>
    <xs:documentation>Intended for use as the type of user-declared elements to make them simple links.</xs:documentation>
  </xs:annotation>
  <xs:group ref="xlink:simpleModel"/>
  <xs:attributeGroup ref="xlink:simpleAttrs"/>
</xs:complexType>
Complex Type xlink:titleEltType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#titleAttrs xlink_xsd.tmp#titleModel
Properties
mixed true
Used by
Element xlink:title
Model
ANY element from ANY namespace
Attributes
QName Type Fixed Use Annotation
xlink:type xlink:typeType title required
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:complexType mixed="true" name="titleEltType">
  <xs:group ref="xlink:titleModel"/>
  <xs:attributeGroup ref="xlink:titleAttrs"/>
</xs:complexType>
Complex Type xlink:resourceType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#resourceAttrs xlink_xsd.tmp#resourceModel
Properties
mixed true
Used by
Element xlink:resource
Model
ANY element from ANY namespace
Attributes
QName Type Fixed Use
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType resource required
Source
<xs:complexType mixed="true" name="resourceType">
  <xs:group ref="xlink:resourceModel"/>
  <xs:attributeGroup ref="xlink:resourceAttrs"/>
</xs:complexType>

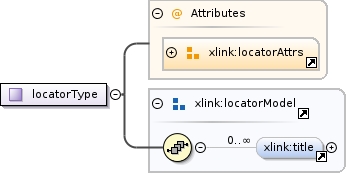

Complex Type xlink:locatorType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#locatorAttrs xlink_xsd.tmp#http___www.w3.org_1999_xlink_title xlink_xsd.tmp#locatorModel
Used by
Element xlink:locator
Model
Children xlink:title
Attributes
Source
<xs:complexType name="locatorType">
  <xs:group ref="xlink:locatorModel"/>
  <xs:attributeGroup ref="xlink:locatorAttrs"/>
</xs:complexType>
Complex Type xlink:arcType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#arcAttrs xlink_xsd.tmp#http___www.w3.org_1999_xlink_title xlink_xsd.tmp#arcModel
Used by
Element xlink:arc
Model
Children xlink:title
Attributes
Source
<xs:complexType name="arcType">
  <xs:group ref="xlink:arcModel"/>
  <xs:attributeGroup ref="xlink:arcAttrs"/>
</xs:complexType>
Complex Type xlink:extended
Namespace http://www.w3.org/1999/xlink
Annotations
Intended for use as the type of user-declared elements to make them
extended links.
Note that the elements referenced in the content model are all abstract.
The intention is that by simply declaring elements with these as their
substitutionGroup, all the right things will happen.
Diagram
Diagram xlink_xsd.tmp#extendedAttrs xlink_xsd.tmp#http___www.w3.org_1999_xlink_title xlink_xsd.tmp#resource xlink_xsd.tmp#locator xlink_xsd.tmp#arc xlink_xsd.tmp#extendedModel
Model
Children xlink:arc, xlink:locator, xlink:resource, xlink:title
Attributes
QName Type Fixed Use
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType extended required
Source
<xs:complexType name="extended">
  <xs:annotation>
    <xs:documentation>Intended for use as the type of user-declared elements to make them extended links. Note that the elements referenced in the content model are all abstract. The intention is that by simply declaring elements with these as their substitutionGroup, all the right things will happen.</xs:documentation>
  </xs:annotation>
  <xs:group ref="xlink:extendedModel" minOccurs="0" maxOccurs="unbounded"/>
  <xs:attributeGroup ref="xlink:extendedAttrs"/>
</xs:complexType>
Attribute @xlink:type
Namespace http://www.w3.org/1999/xlink
Type xlink:typeType
Properties
content simple
Facets
enumeration simple
enumeration extended
enumeration title
enumeration resource
enumeration locator
enumeration arc
Used by
Source
<xs:attribute name="type" type="xlink:typeType"/>
Attribute @xlink:href
Namespace http://www.w3.org/1999/xlink
Type xlink:hrefType
Properties
content simple
Used by
Source
<xs:attribute name="href" type="xlink:hrefType"/>
Attribute @xlink:role
Namespace http://www.w3.org/1999/xlink
Type xlink:roleType
Properties
content simple
Facets
minLength 1
Used by
Source
<xs:attribute name="role" type="xlink:roleType"/>
Attribute @xlink:arcrole
Namespace http://www.w3.org/1999/xlink
Type xlink:arcroleType
Properties
content simple
Facets
minLength 1
Used by
Source
<xs:attribute name="arcrole" type="xlink:arcroleType"/>
Attribute @xlink:title
Namespace http://www.w3.org/1999/xlink
Type xlink:titleAttrType
Properties
content simple
Used by
Source
<xs:attribute name="title" type="xlink:titleAttrType"/>
Attribute @xlink:show
Namespace http://www.w3.org/1999/xlink
Type xlink:showType
Properties
content simple
Facets
enumeration new
enumeration replace
enumeration embed
enumeration other
enumeration none
Used by
Source
<xs:attribute name="show" type="xlink:showType"/>
Attribute @xlink:actuate
Namespace http://www.w3.org/1999/xlink
Type xlink:actuateType
Properties
content simple
Facets
enumeration onLoad
enumeration onRequest
enumeration other
enumeration none
Used by
Source
<xs:attribute name="actuate" type="xlink:actuateType"/>
Attribute @xlink:label
Namespace http://www.w3.org/1999/xlink
Type xlink:labelType
Properties
content simple
Used by
Source
<xs:attribute name="label" type="xlink:labelType"/>
Attribute @xlink:from
Namespace http://www.w3.org/1999/xlink
Type xlink:fromType
Properties
content simple
Used by
Attribute Group xlink:arcAttrs
Source
<xs:attribute name="from" type="xlink:fromType"/>
Attribute @xlink:to
Namespace http://www.w3.org/1999/xlink
Type xlink:toType
Properties
content simple
Used by
Attribute Group xlink:arcAttrs
Source
<xs:attribute name="to" type="xlink:toType"/>
Element Group xlink:simpleModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Used by
Complex Type xlink:simple
Model
ANY element from ANY namespace
Source
<xs:group name="simpleModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Element Group xlink:extendedModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#http___www.w3.org_1999_xlink_title xlink_xsd.tmp#resource xlink_xsd.tmp#locator xlink_xsd.tmp#arc
Used by
Complex Type xlink:extended
Model
Children xlink:arc, xlink:locator, xlink:resource, xlink:title
Source
<xs:group name="extendedModel">
  <xs:choice>
    <xs:element ref="xlink:title"/>
    <xs:element ref="xlink:resource"/>
    <xs:element ref="xlink:locator"/>
    <xs:element ref="xlink:arc"/>
  </xs:choice>
</xs:group>
Element Group xlink:titleModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Used by
Complex Type xlink:titleEltType
Model
ANY element from ANY namespace
Source
<xs:group name="titleModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Element Group xlink:resourceModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Used by
Complex Type xlink:resourceType
Model
ANY element from ANY namespace
Source
<xs:group name="resourceModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Element Group xlink:locatorModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#http___www.w3.org_1999_xlink_title
Used by
Complex Type xlink:locatorType
Model
Children xlink:title
Source
<xs:group name="locatorModel">
  <xs:sequence>
    <xs:element ref="xlink:title" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Element Group xlink:arcModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#http___www.w3.org_1999_xlink_title
Used by
Complex Type xlink:arcType
Model
Children xlink:title
Source
<xs:group name="arcModel">
  <xs:sequence>
    <xs:element ref="xlink:title" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Attribute Group xlink:simpleAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#type xlink_xsd.tmp#href xlink_xsd.tmp#role xlink_xsd.tmp#arcrole xlink_xsd.tmp#title xlink_xsd.tmp#show xlink_xsd.tmp#actuate
Used by
Attributes
Source
<xs:attributeGroup name="simpleAttrs">
  <xs:attribute ref="xlink:type" fixed="simple"/>
  <xs:attribute ref="xlink:href"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:arcrole"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:show"/>
  <xs:attribute ref="xlink:actuate"/>
</xs:attributeGroup>
Attribute Group xlink:extendedAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#type xlink_xsd.tmp#role xlink_xsd.tmp#title
Used by
Complex Type xlink:extended
Attributes
QName Type Fixed Use
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType extended required
Source
<xs:attributeGroup name="extendedAttrs">
  <xs:attribute ref="xlink:type" fixed="extended" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
</xs:attributeGroup>
Attribute Group xlink:titleAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#type xml_xsd.tmp#lang
Used by
Complex Type xlink:titleEltType
Attributes
QName Type Fixed Use Annotation
xlink:type xlink:typeType title required
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:attributeGroup name="titleAttrs">
  <xs:attribute ref="xlink:type" fixed="title" use="required"/>
  <xs:attribute ref="xml:lang">
    <xs:annotation>
      <xs:documentation>xml:lang is not required, but provides much of the motivation for title elements in addition to attributes, and so is provided here for convenience.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
Attribute Group xlink:resourceAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#type xlink_xsd.tmp#role xlink_xsd.tmp#title xlink_xsd.tmp#label
Used by
Complex Type xlink:resourceType
Attributes
QName Type Fixed Use
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType resource required
Source
<xs:attributeGroup name="resourceAttrs">
  <xs:attribute ref="xlink:type" fixed="resource" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:label"/>
</xs:attributeGroup>
Attribute Group xlink:locatorAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#type xlink_xsd.tmp#href xlink_xsd.tmp#role xlink_xsd.tmp#title xlink_xsd.tmp#label
Used by
Complex Type xlink:locatorType
Attributes
Source
<xs:attributeGroup name="locatorAttrs">
  <xs:attribute ref="xlink:type" fixed="locator" use="required"/>
  <xs:attribute ref="xlink:href" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:label">
    <xs:annotation>
      <xs:documentation>label is not required, but locators have no particular XLink function if they are not labeled.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>

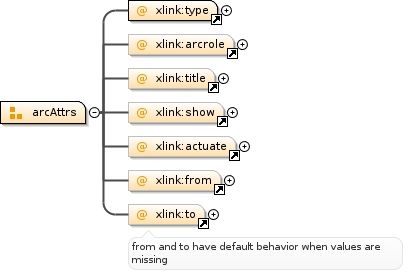

Attribute Group xlink:arcAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink_xsd.tmp#type xlink_xsd.tmp#arcrole xlink_xsd.tmp#title xlink_xsd.tmp#show xlink_xsd.tmp#actuate xlink_xsd.tmp#from xlink_xsd.tmp#to
Used by
Complex Type xlink:arcType
Attributes
Source
<xs:attributeGroup name="arcAttrs">
  <xs:attribute ref="xlink:type" fixed="arc" use="required"/>
  <xs:attribute ref="xlink:arcrole"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:show"/>
  <xs:attribute ref="xlink:actuate"/>
  <xs:attribute ref="xlink:from"/>
  <xs:attribute ref="xlink:to">
    <xs:annotation>
      <xs:documentation>from and to have default behavior when values are missing</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
